■ Technical Specifications
Model
510 type c battery pen
Thread
510 / 808D Threaded
Charging
Micro USB / Type C
■ Product Description & Operation
510 Thread Preheating Variable Voltage Battery (350mAh to 1300mAh Customize)
Note: Standard Battery Capacity is 400mAh.
⚡
Voltage Adjustment: 3.2V-4.2V (Press Three Times To Adjust Voltage)
🔄
ON/OFF Switch: Press continuously Five times in two seconds
🔘
Work Status: Press Switch to Keep Work
🛡️
Protections: Low Voltage Protection (Less than 3.2V) & Short-circuit Protection
📊
Power Display: LED Display Integrated in the battery
■ LED Indicator Status
Green LED
Full Power (3.85V-4.2V)
Blue LED
Low Power (3.5V-3.8V)
Red LED
Recharge Status / Charging
Flash 10 Times
Need to Recharge

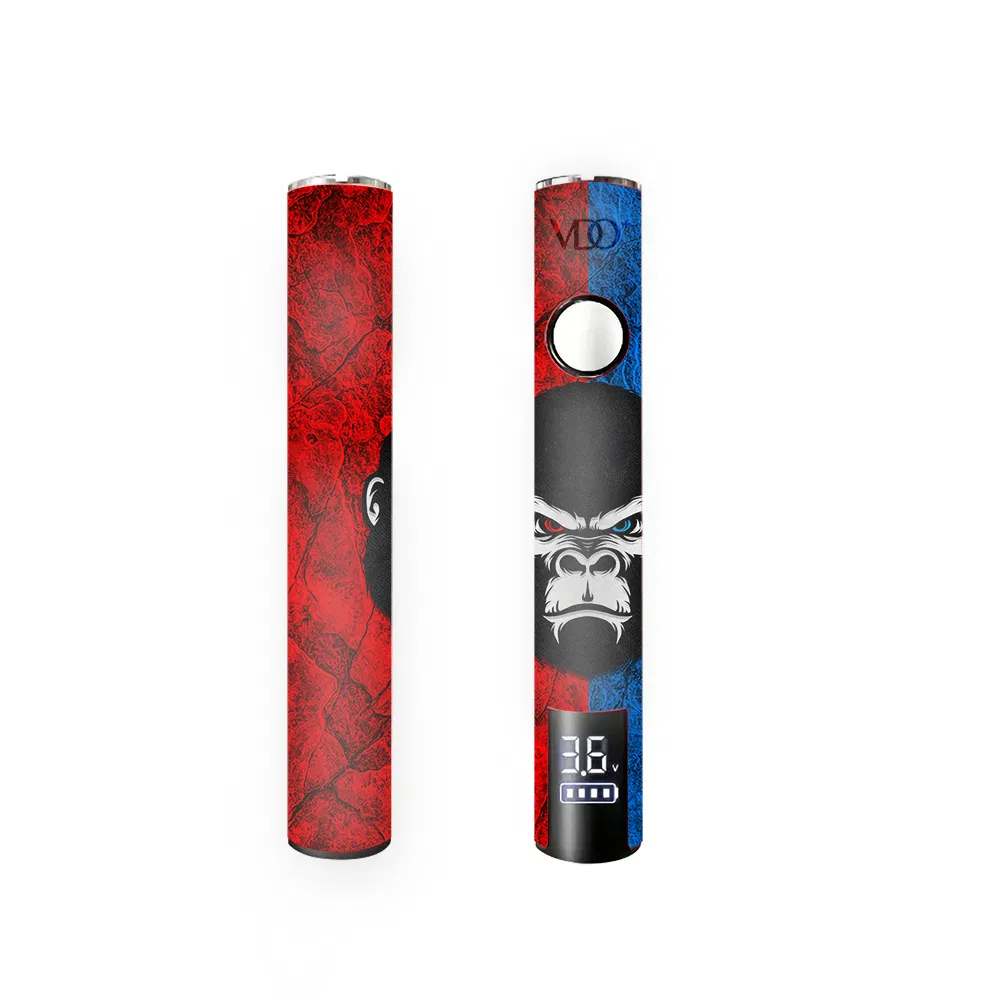

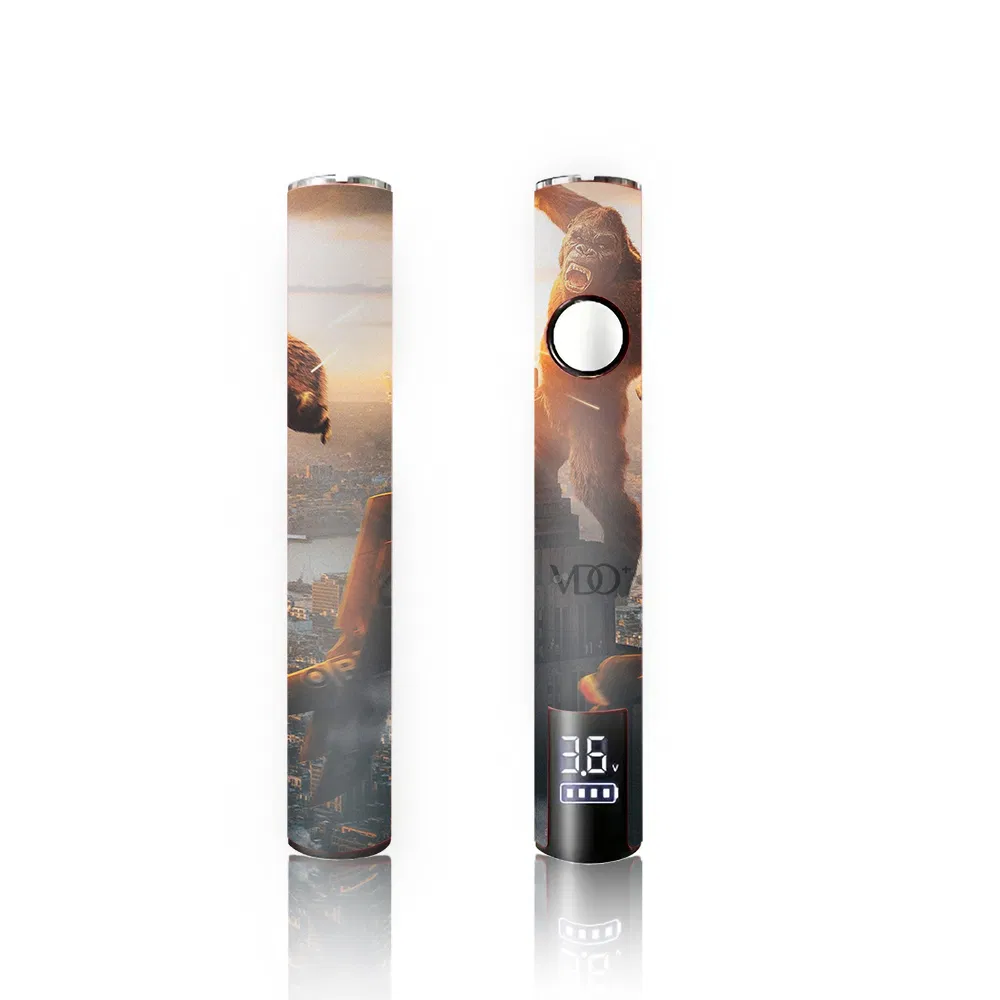

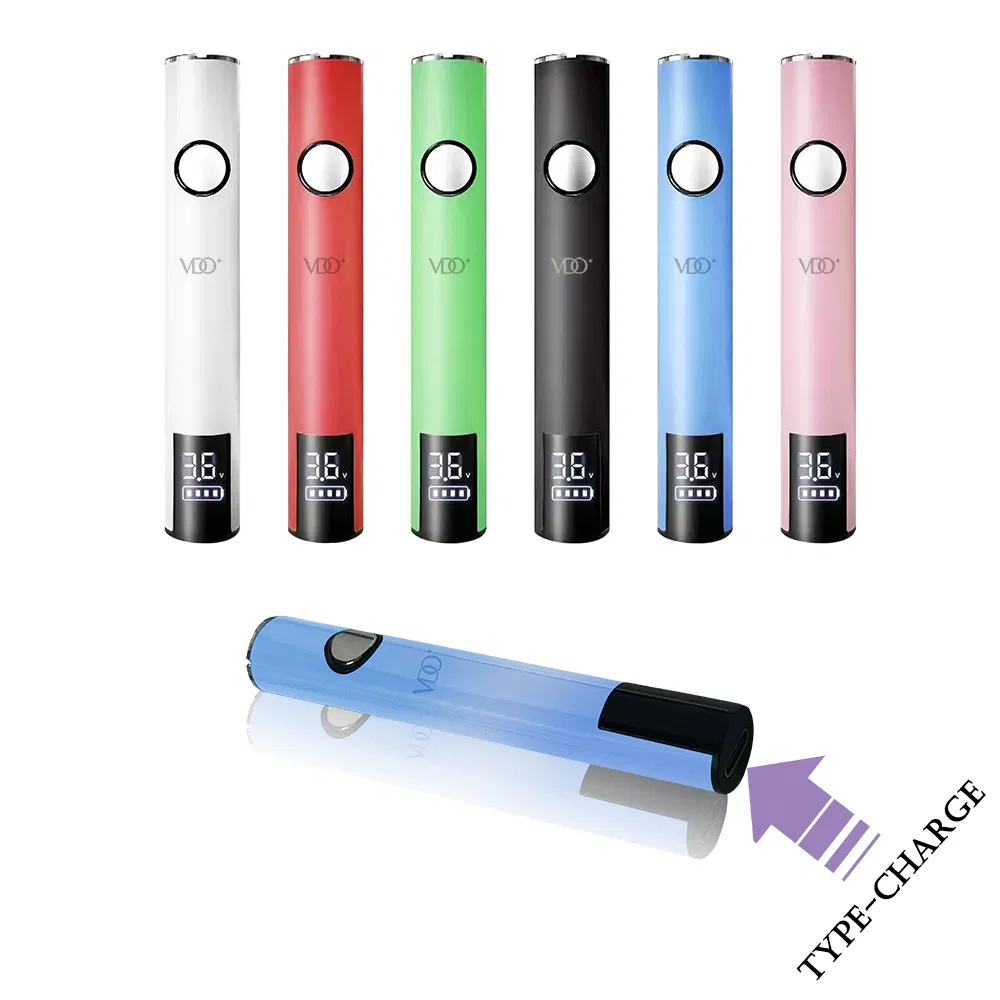

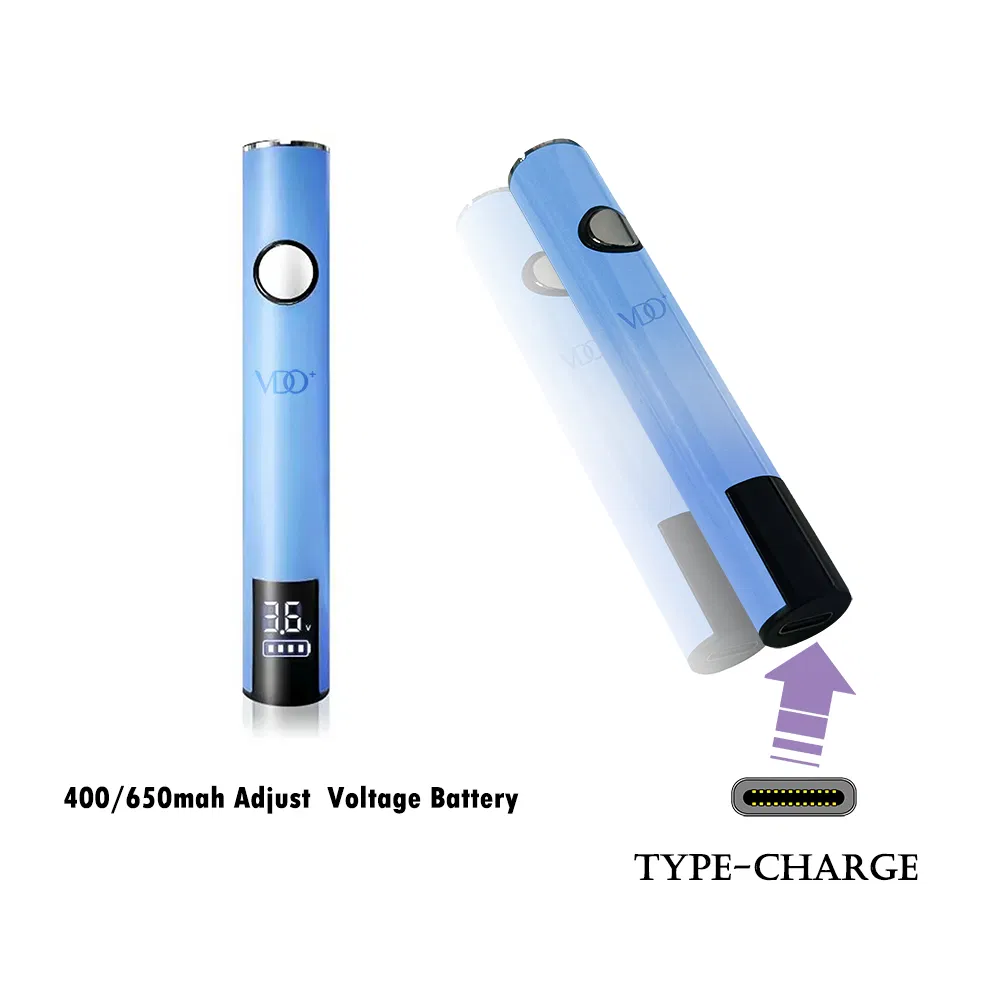

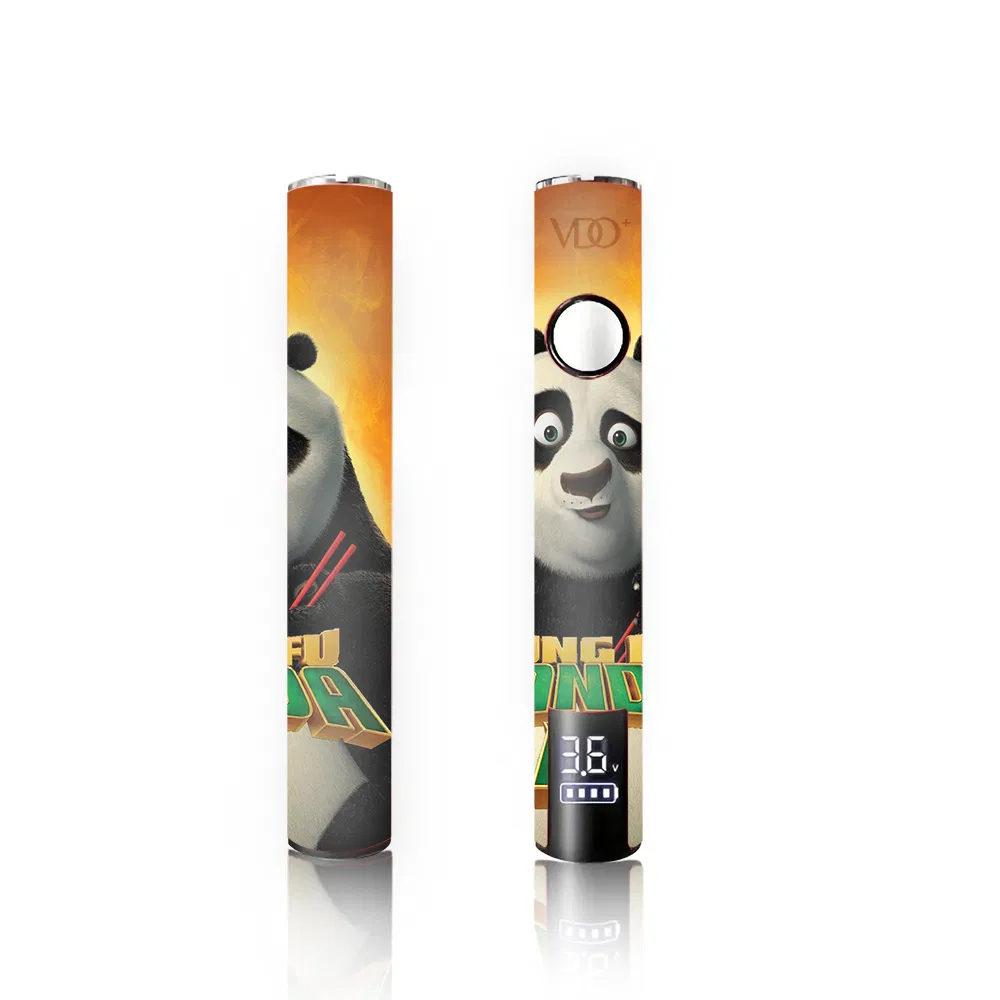

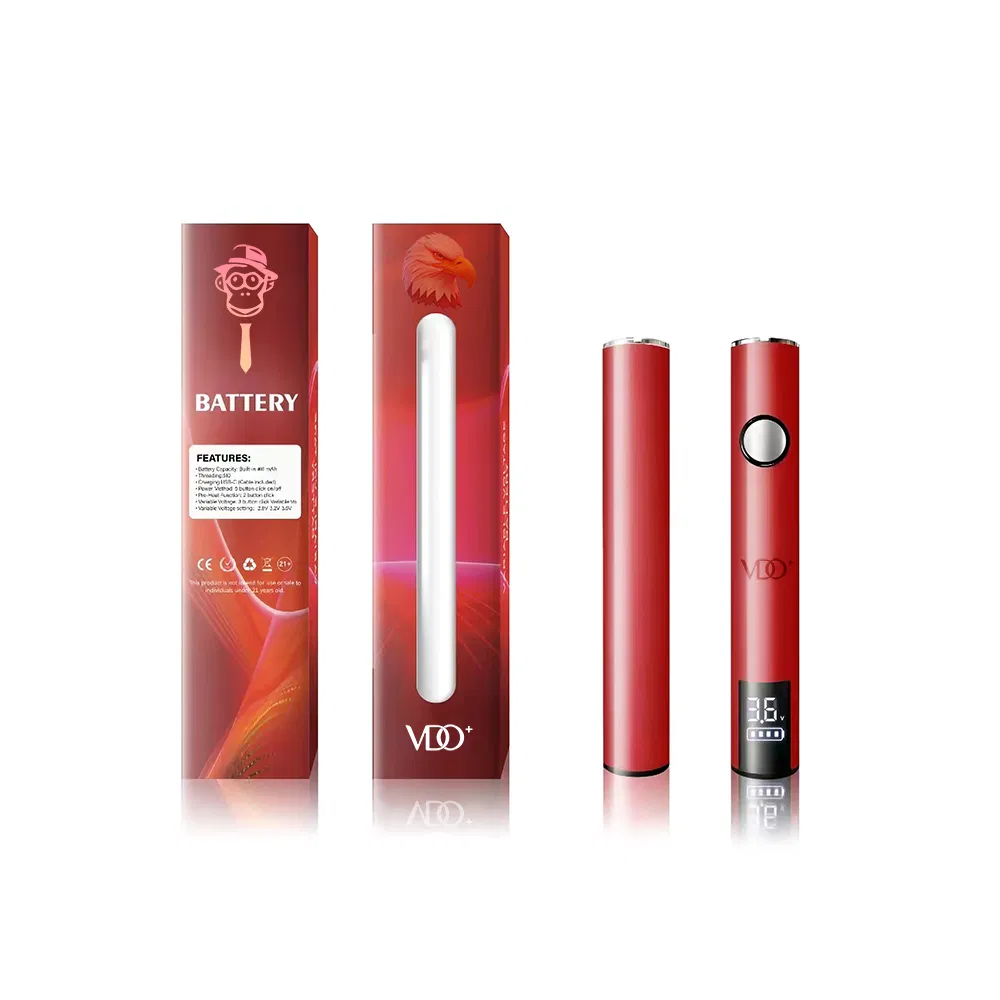

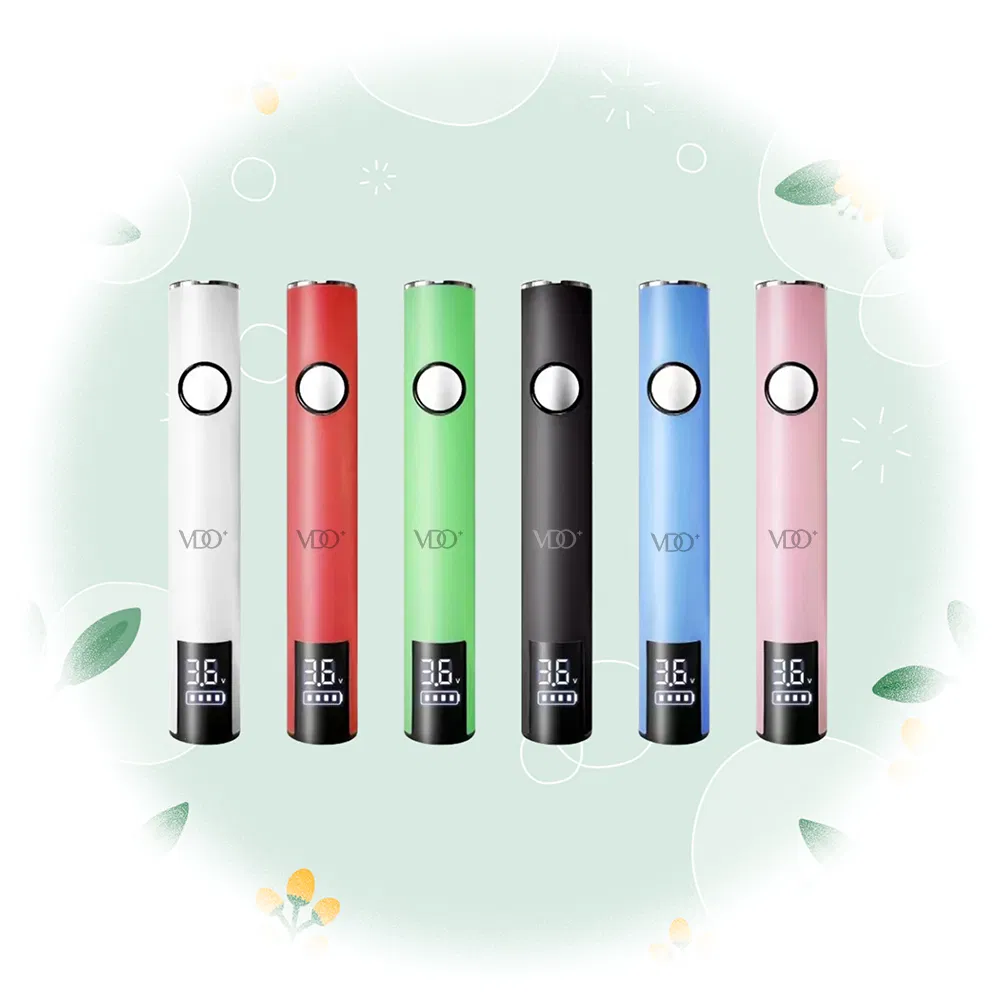

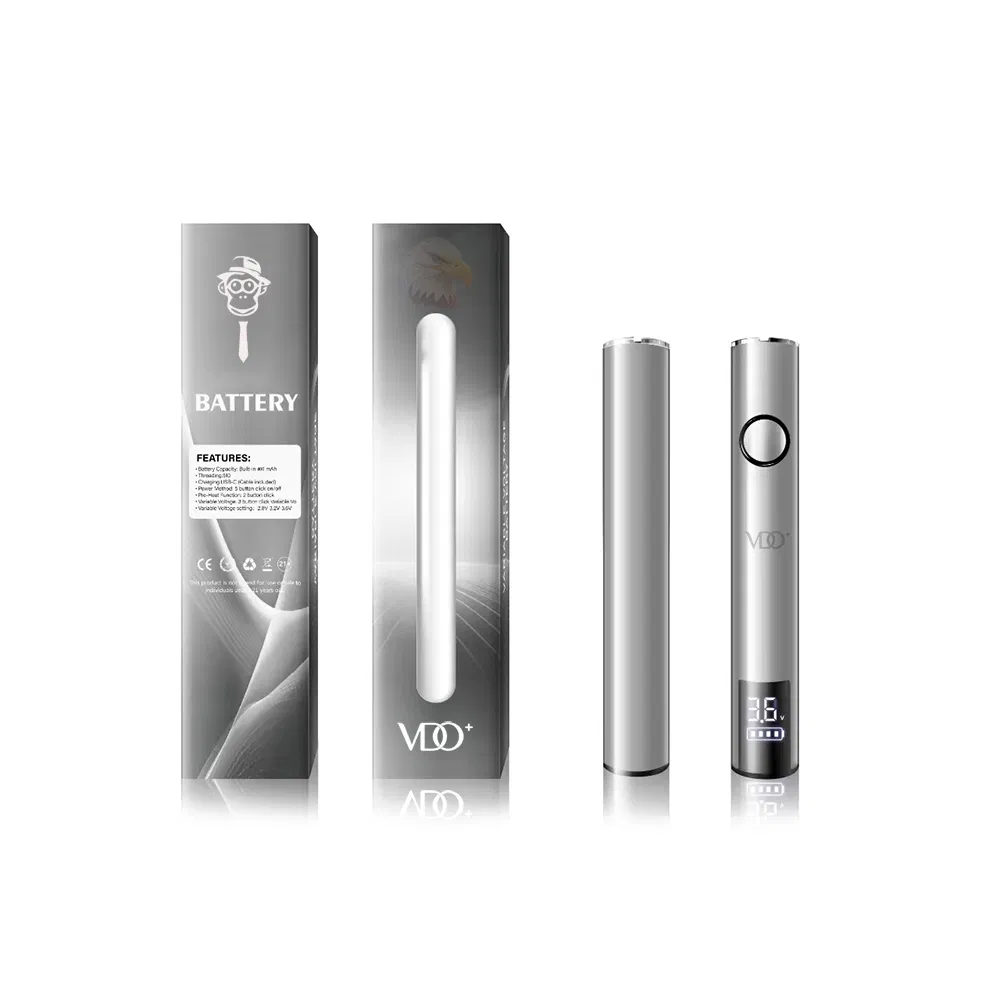

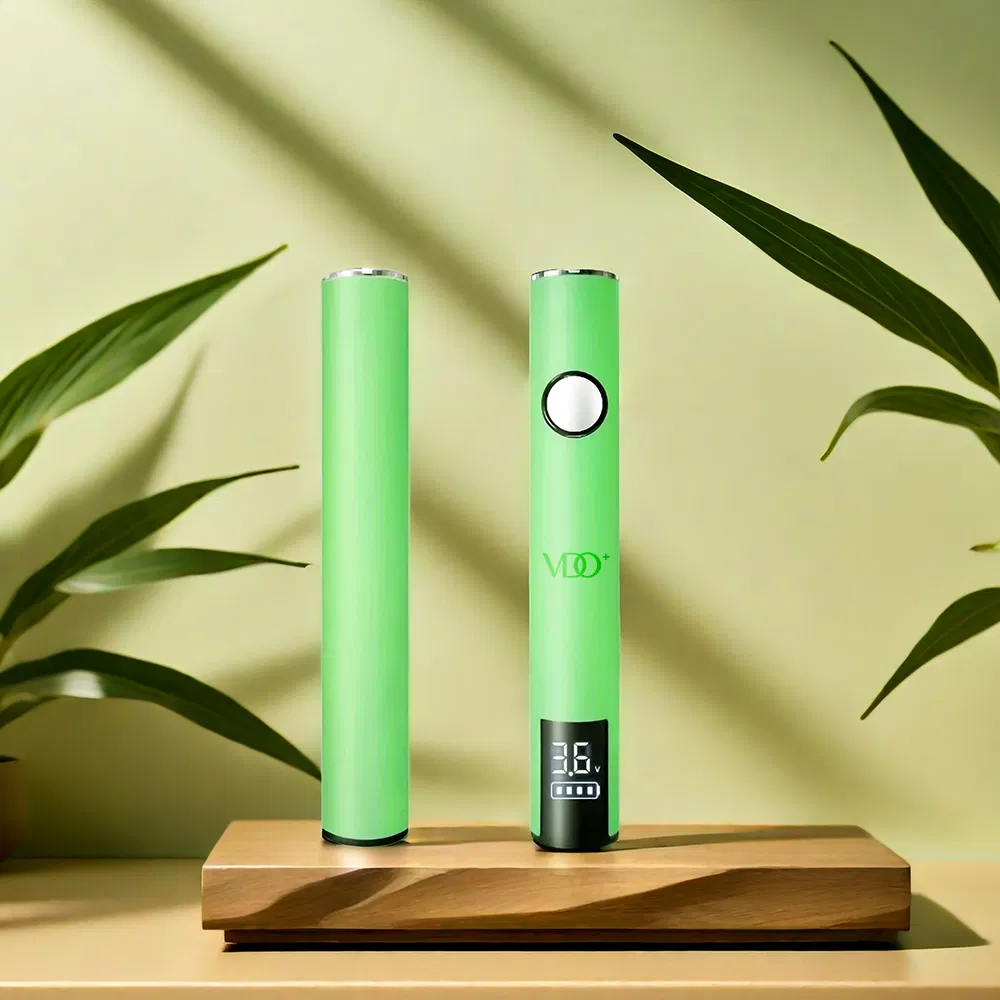

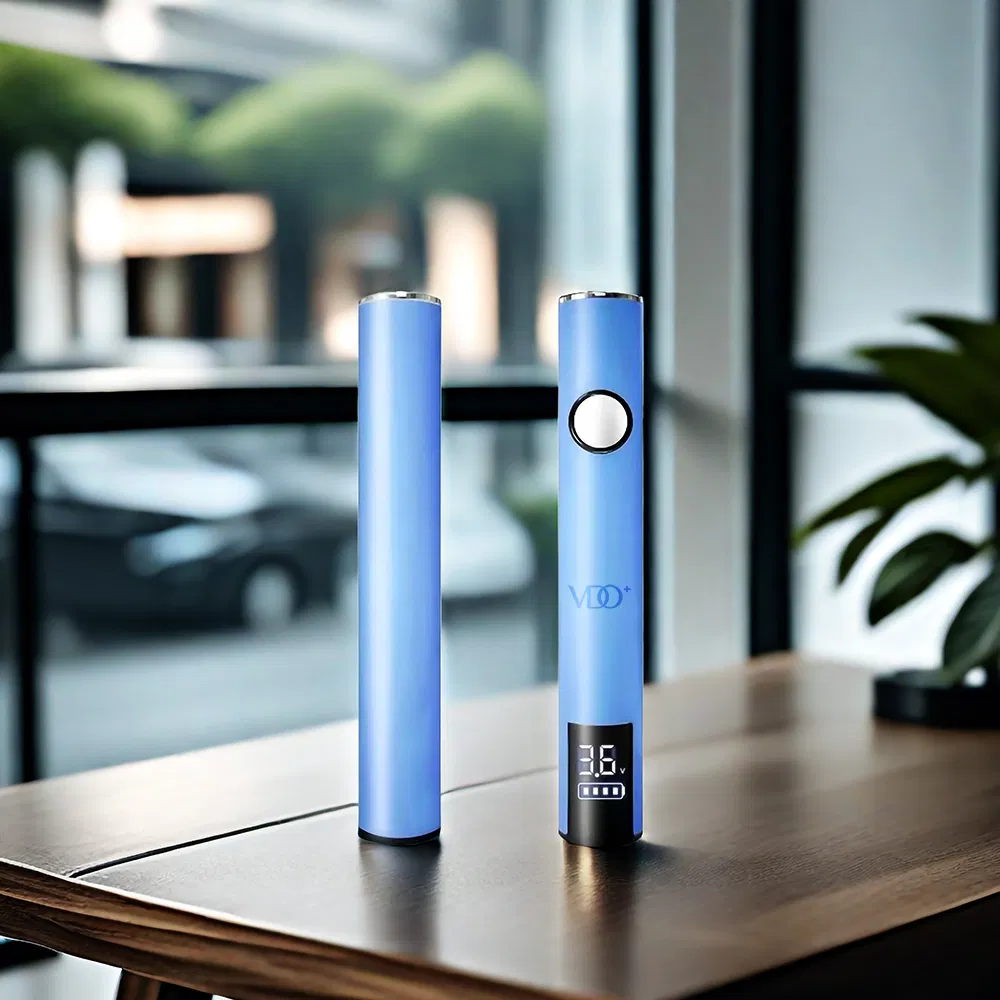

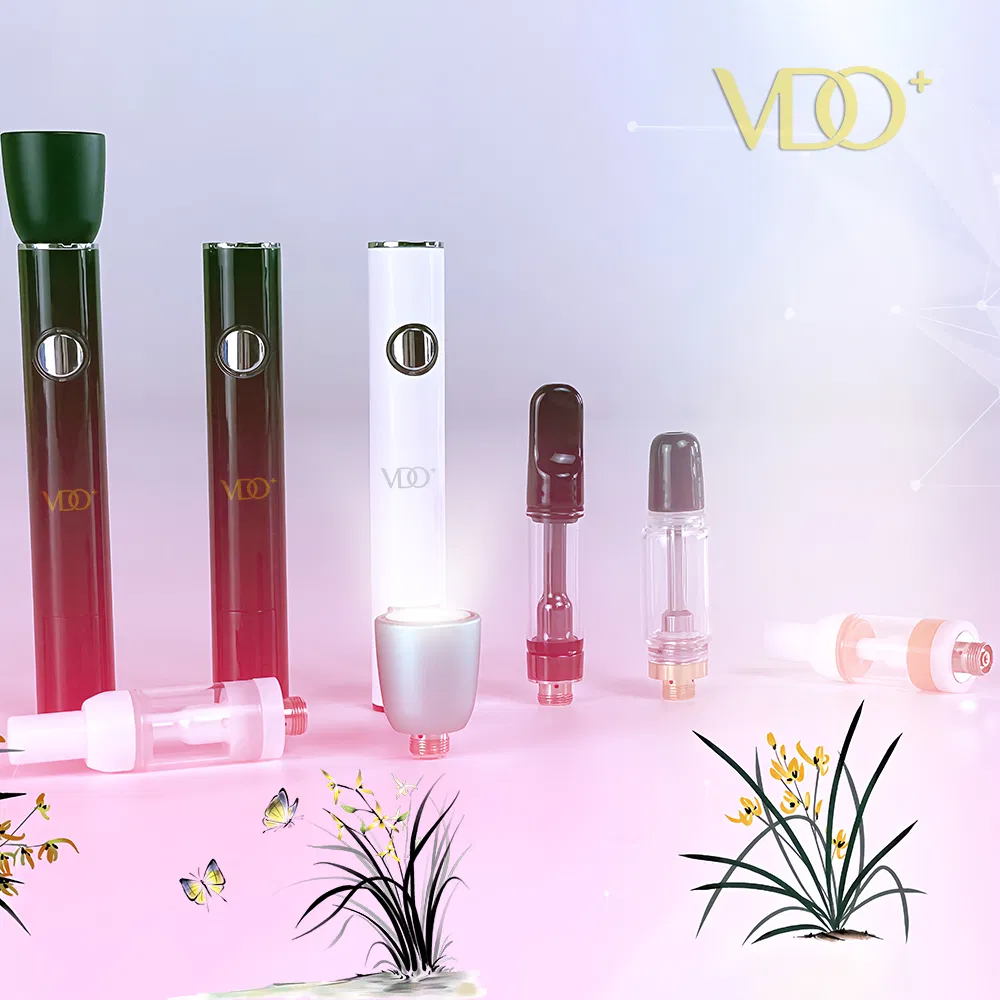

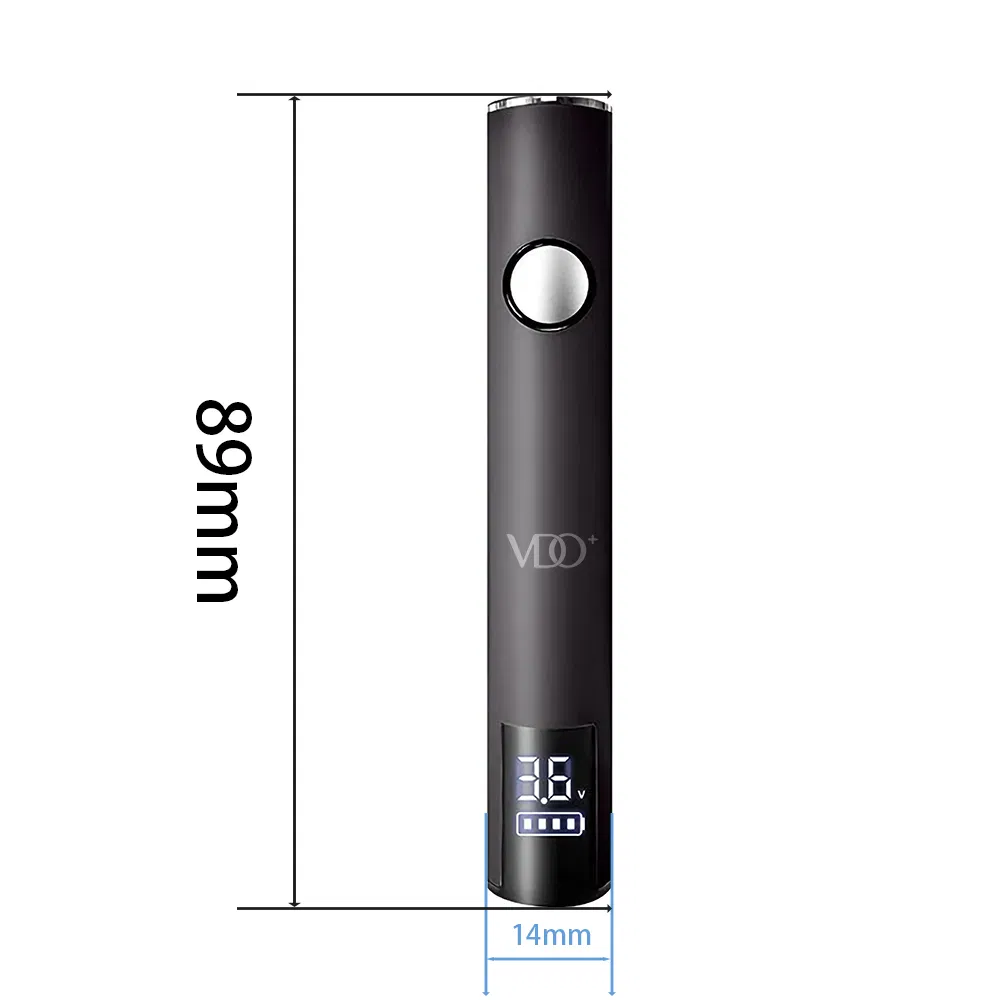

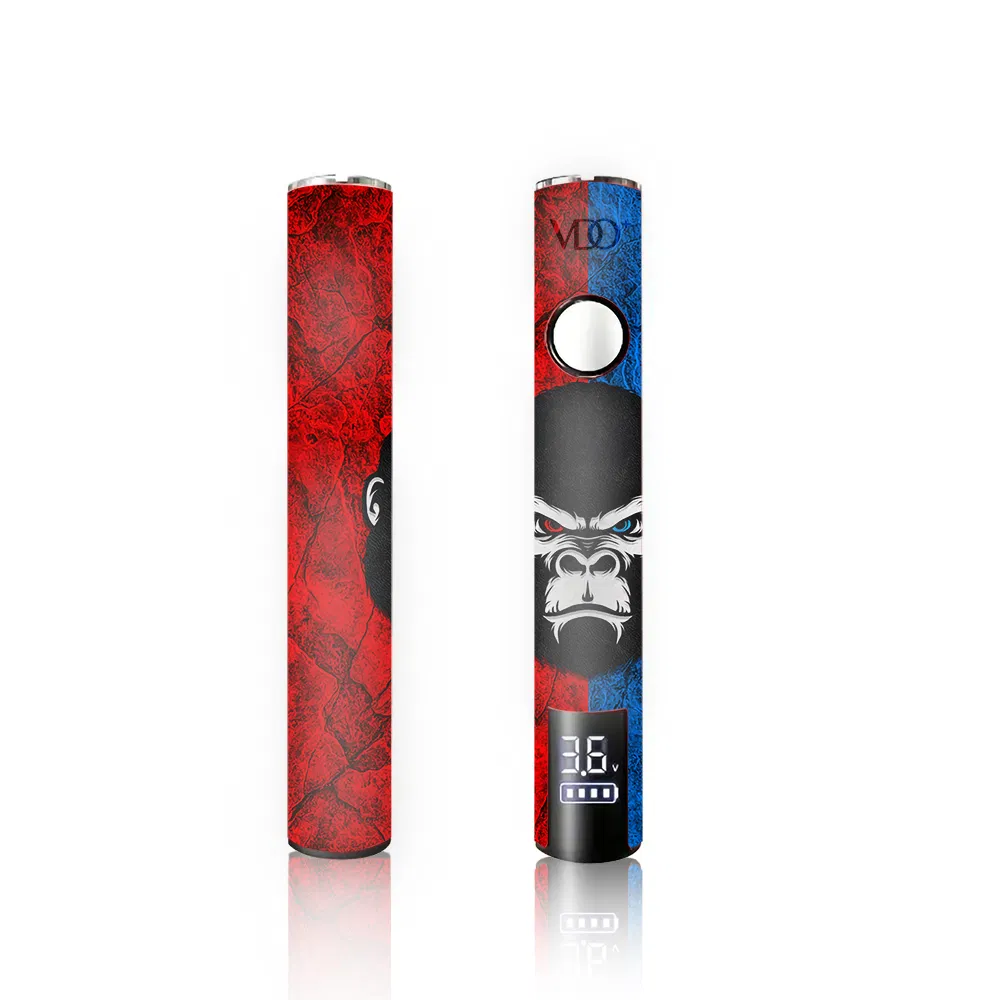

■ Product Visuals
❓ Frequently Asked Questions
1. How do I turn the battery on or off?
To power the device on or off, press the switch button continuously five times within two seconds.
2. How can I adjust the working voltage?
The battery supports variable voltage from 3.2V to 4.2V. Simply press the button three times rapidly to cycle through the voltage settings.
3. What do the different LED colors indicate?
Green LED indicates full power (3.85V-4.2V), Blue LED indicates low power (3.5V-3.8V), and Red LED indicates the device is in recharge status.
4. How do I know when the battery needs charging?
When the power is too low to operate, the LED indicator will flash 10 times, signaling that it is time to recharge.
5. Does this battery have safety features?
Yes, it includes short-circuit protection (LED flashes three times) and low voltage protection (device stops working if voltage is below 3.2V).
6. What type of charger does it use?
This model supports convenient charging via Micro USB or Type-C cable. The Red LED stays lit during charging and turns Green when the voltage exceeds 4.15V.
